MSD Series Feed Pumps

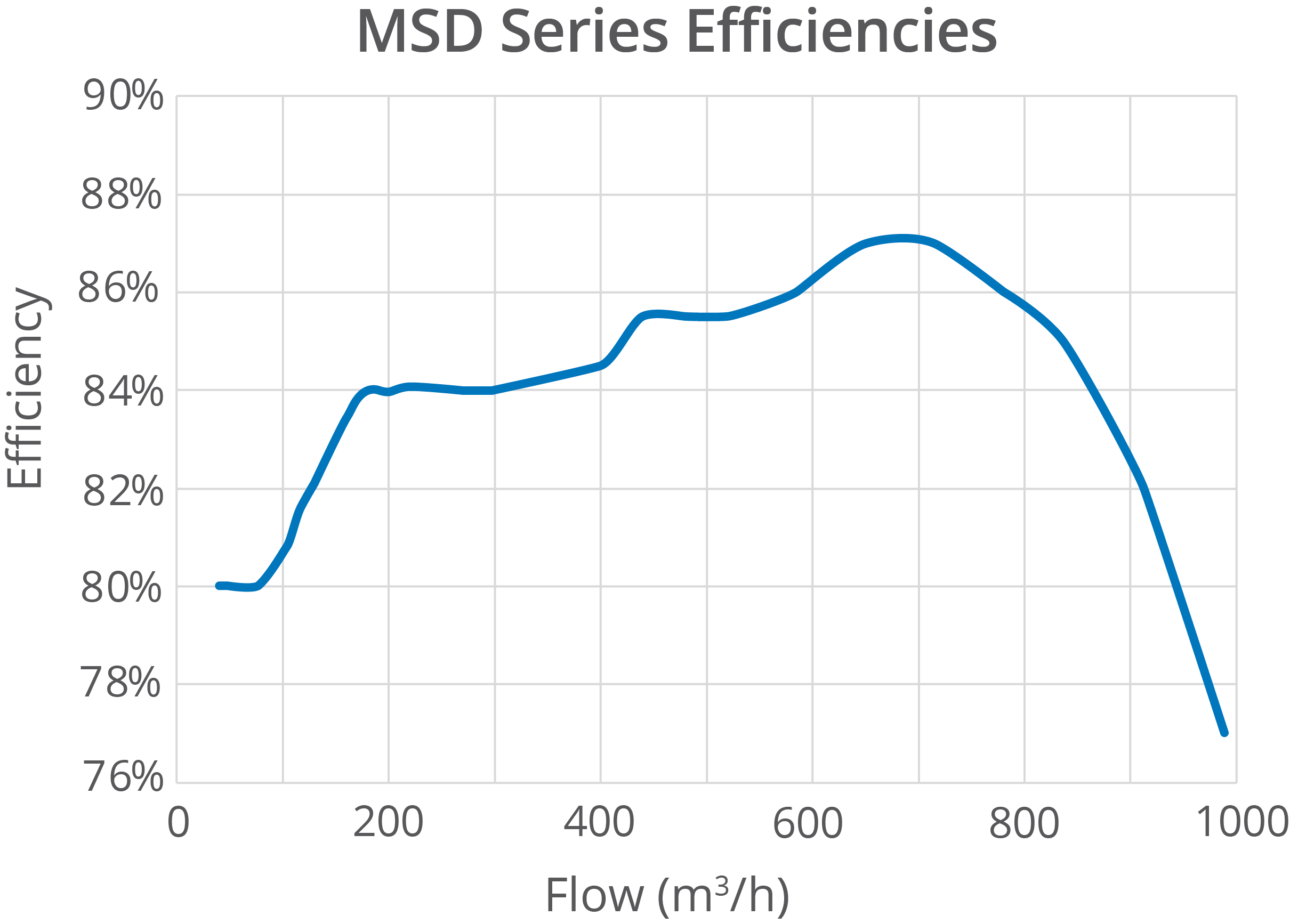

Best-in-Class Efficiency

High efficiency combined with superior materials for long term service in the most challenging feedwater.

All investment cast stage components, highly refined flow path and the innovative water bearing technology make the MSD the “go to” pump for the most demanding SWRO applications around the world.


Asset 8@4x-8-1
Get a quote

APPLICATIONS

  • RO Feed, Booster or Circulation Pump
  • Any High Pressure Clean-Fluid Application

KEY SPECIFICATIONS

  • 20 – 1080 m3/h (88 – 4755 gpm)
  • Up to 87% efficiency
  • Pressures to 82 bar (1200 psi)
  • Super Duplex 2507 Construction with Electropolished Castings

FEATURES

  • Balanced Impellers
  • Simple Installation and Maintenance
  • No Oil or Grease Lubricant Required
Description

Loaded with unique features such as the patented Water Bearing™ product lubricated bearings, Super Duplex stainless steel construction, and maintenance-free design ensure years of trouble-free operation. No need for several pumps in parallel, the MSD line has a pump feed flow capacity range of 20 to 850 m3/h and efficiencies up to 86%.

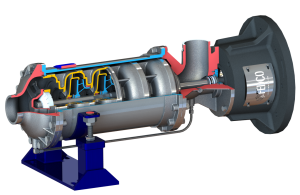

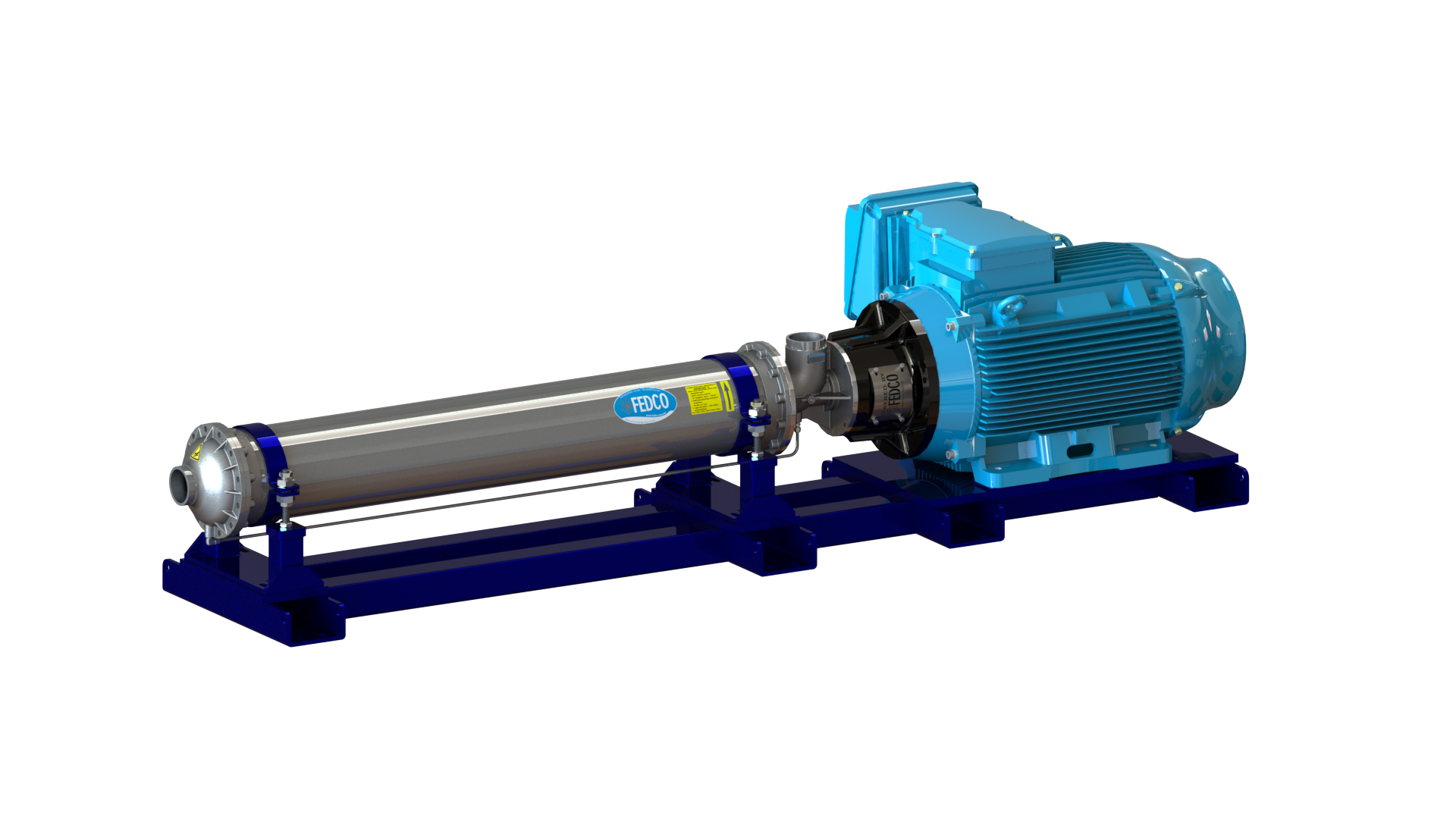

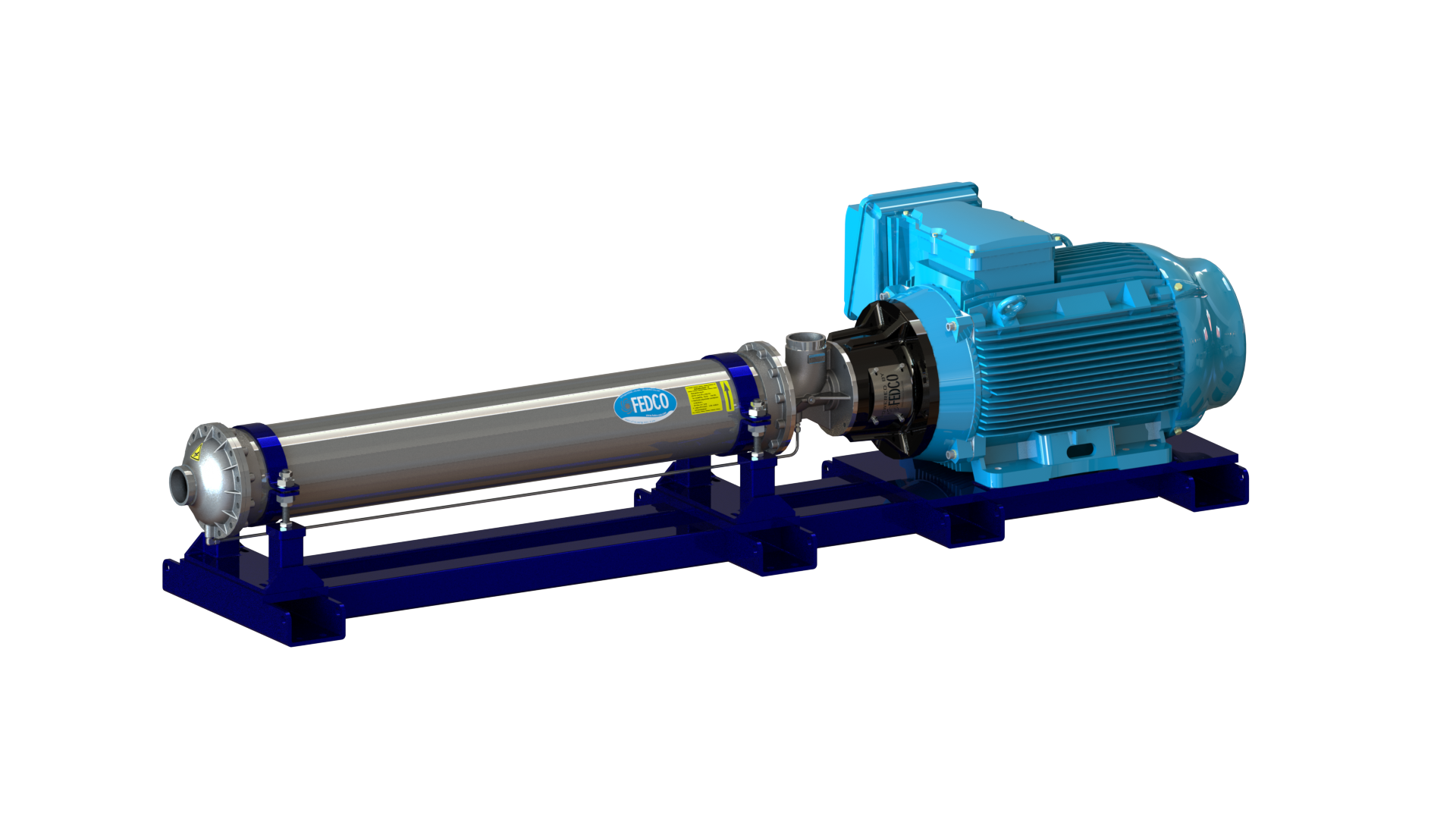

MSD Low Flow models: MSD-40, MSD-70, MSD-130 with shelled design with Super Duplex Shell and shaft, Super Duplex stages standard, baseplate optional.

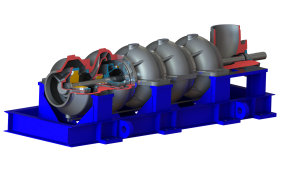

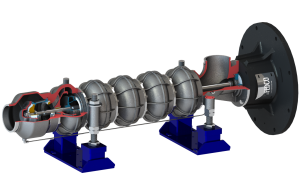

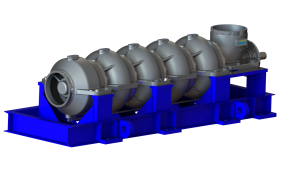

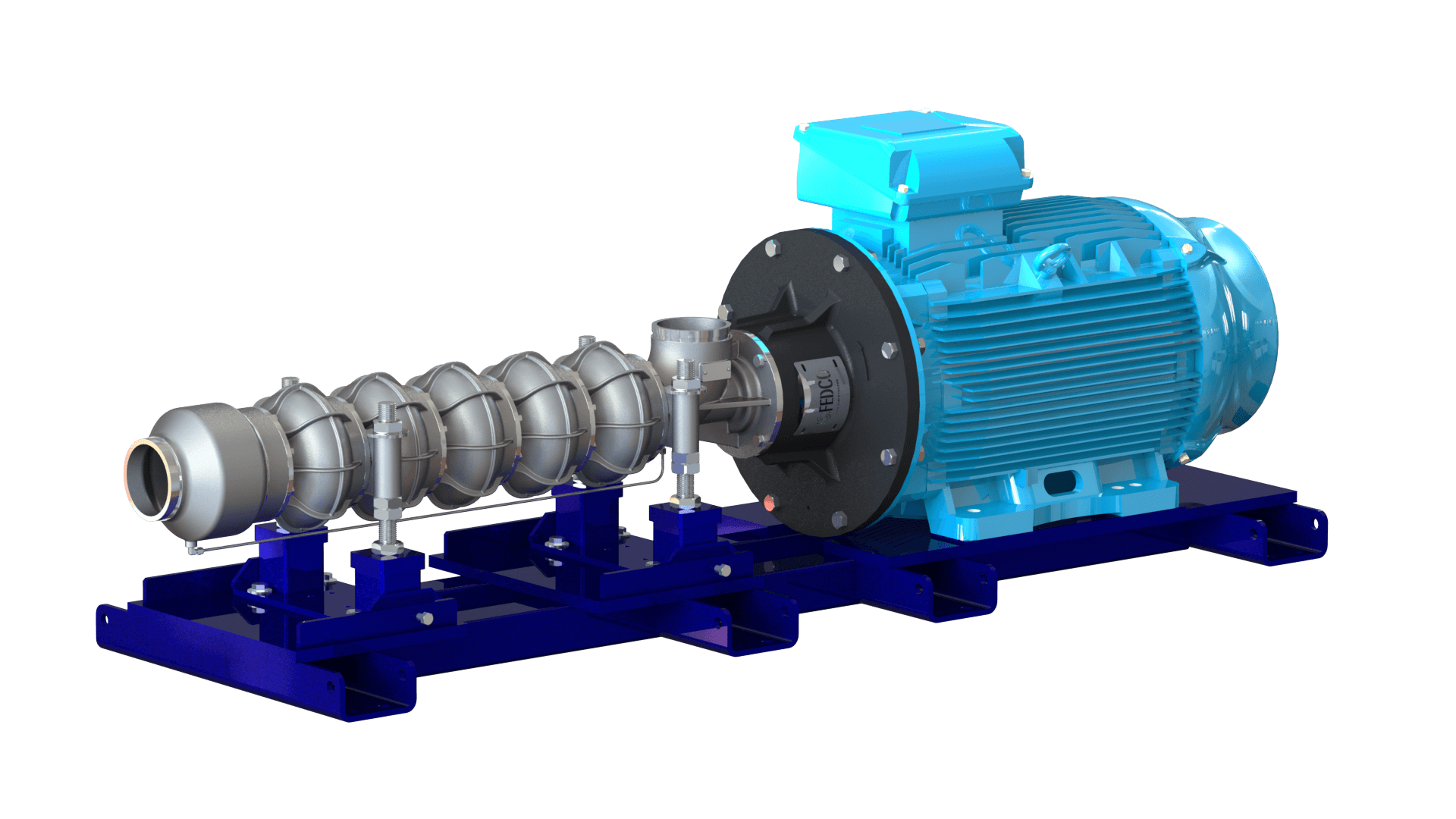

MSD High Flow models: MSD-160, MSD-200, MSD-350, MSD-400, MSD-650 and MSD-800 bolted stage design with Super Duplex shaft and stages standard, Super Duplex material optional, baseplate optional.

Features: High efficiency, fully custom engineered, patented product lubricated Water Bearing™ technology, precision leveling foot, Super Duplex construction, inlet rotation 90°.

Benefits: High Efficiency – Up to 86% Lubrication – fully lubricated by the pumpage only Smooth and quiet operation – well under 80 dBA (not including the motor) High inlet pressure option – up to 82 bar

MSD-Pump-w-part-numbers

  1. Shaft seal operates at low pressure
  2. Flexible disc coupling
  3. Bearing drain line (low pressure)
  4. Stage support blocks
  5. Victaulic pipe joints
  6. Baseplate
  7. Flanged construction for easy internal inspection
  8. Inlet rotatable in 90° increments
  9. Easy shaft alignment
  10. Integrated motor adapter (anodized aluminum alloy)
  11. Super Duplex SS 2507
  12. WATER BEARING™

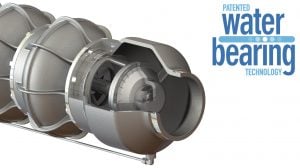

MSD-Water-Bearing-300x167

High Inlet Pressure Option

MSD-HP-seal-option-e1578490281464

All MSD series pumps can be equipped with a high inlet pressure option to allow inlet pressures to 70 bar. The unique design features standard mechanical seals operating at low pressure (1-2 bar) with total protection of the motor from pump thrust loads.

Options

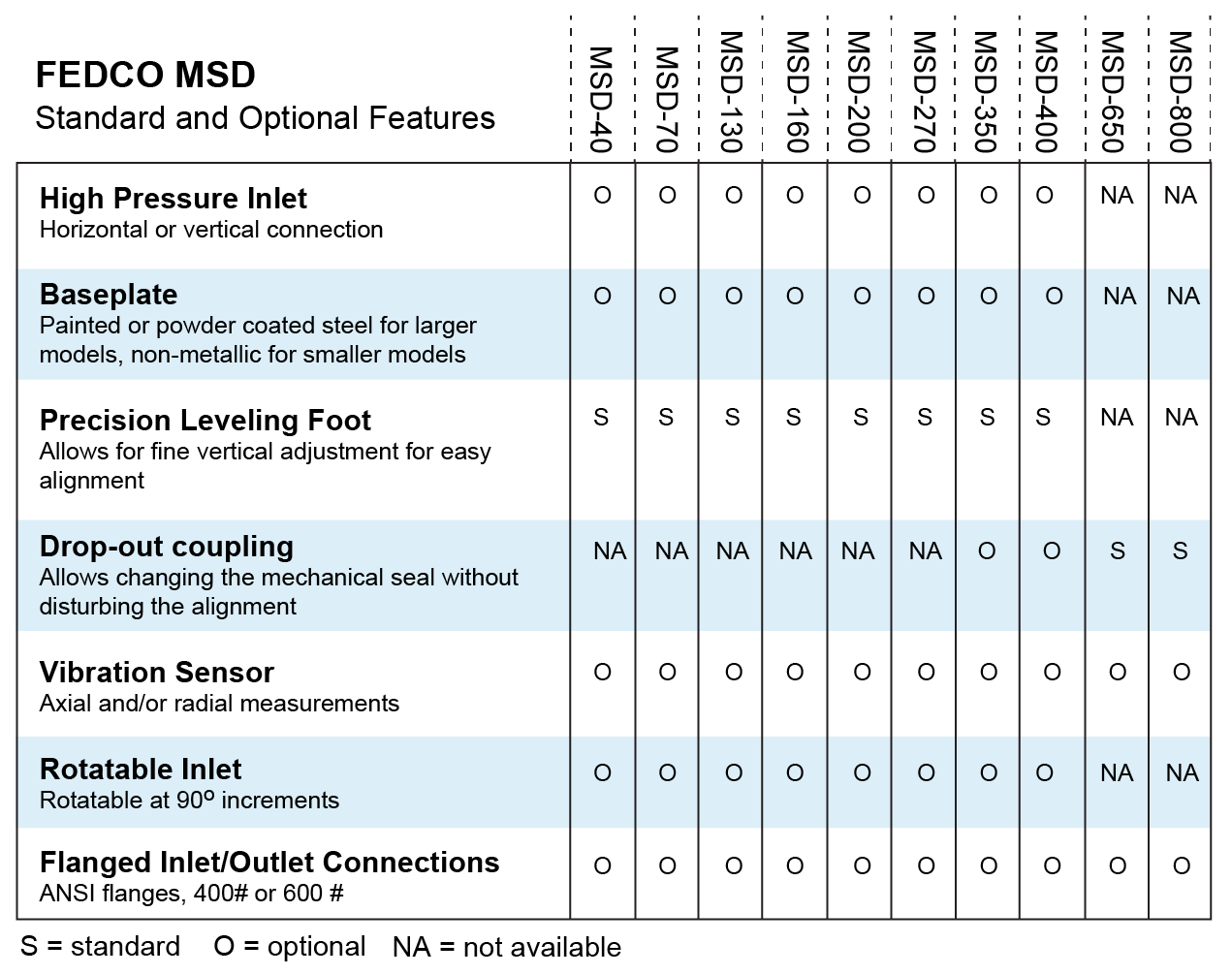

MSD-options-chart

Please contact Customer Service for Manuals and Drawings.

Specifications
MSD-40
MSD-70
MSD-130
MSD-160
MSD-200
MSD-270
MSD-350
MSD-400
MSD-650
MSD-800
Brochures

Click image to view brochure

MSD Brochure 2021 (5)_Part1



Select a Pump



Small- and Mid-Scale Applications

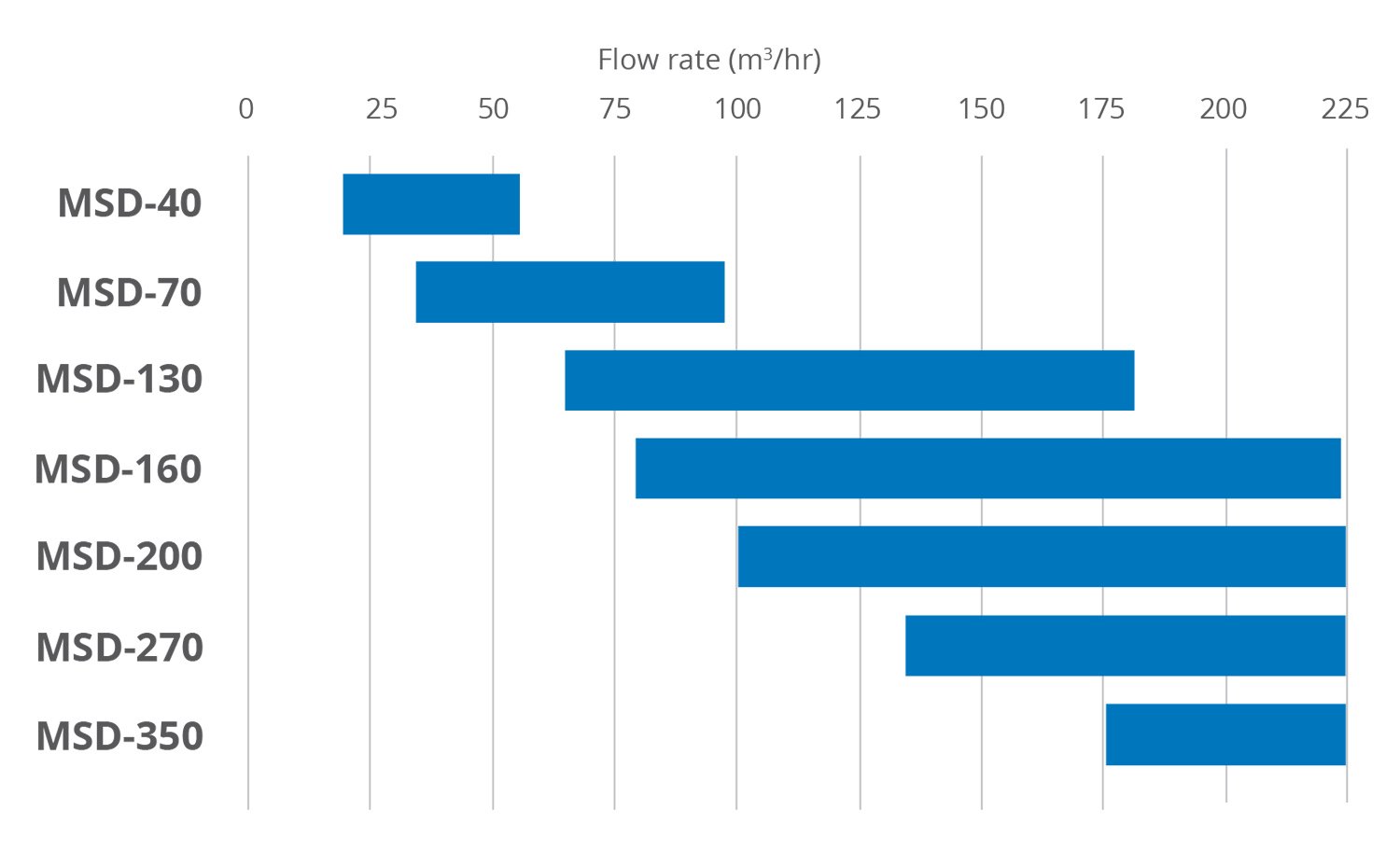

MSD 40-350 Flow RatesFor lower flow rates the MSD Feed Pump provides the efficiency and reliability to ensure the lowest total cost of water in your RO system.

The MSD Feed Pump boasts efficiencies that are competitive with positive displacement pumps, while maintaining the smooth efficiency curve characteristic of centrifugal devices. This means that RO designers and operators need not worry about significant changes in energy consumption in the face of changing feedwater conditions.

Get a quote

Large- and Mega-Scale Applications

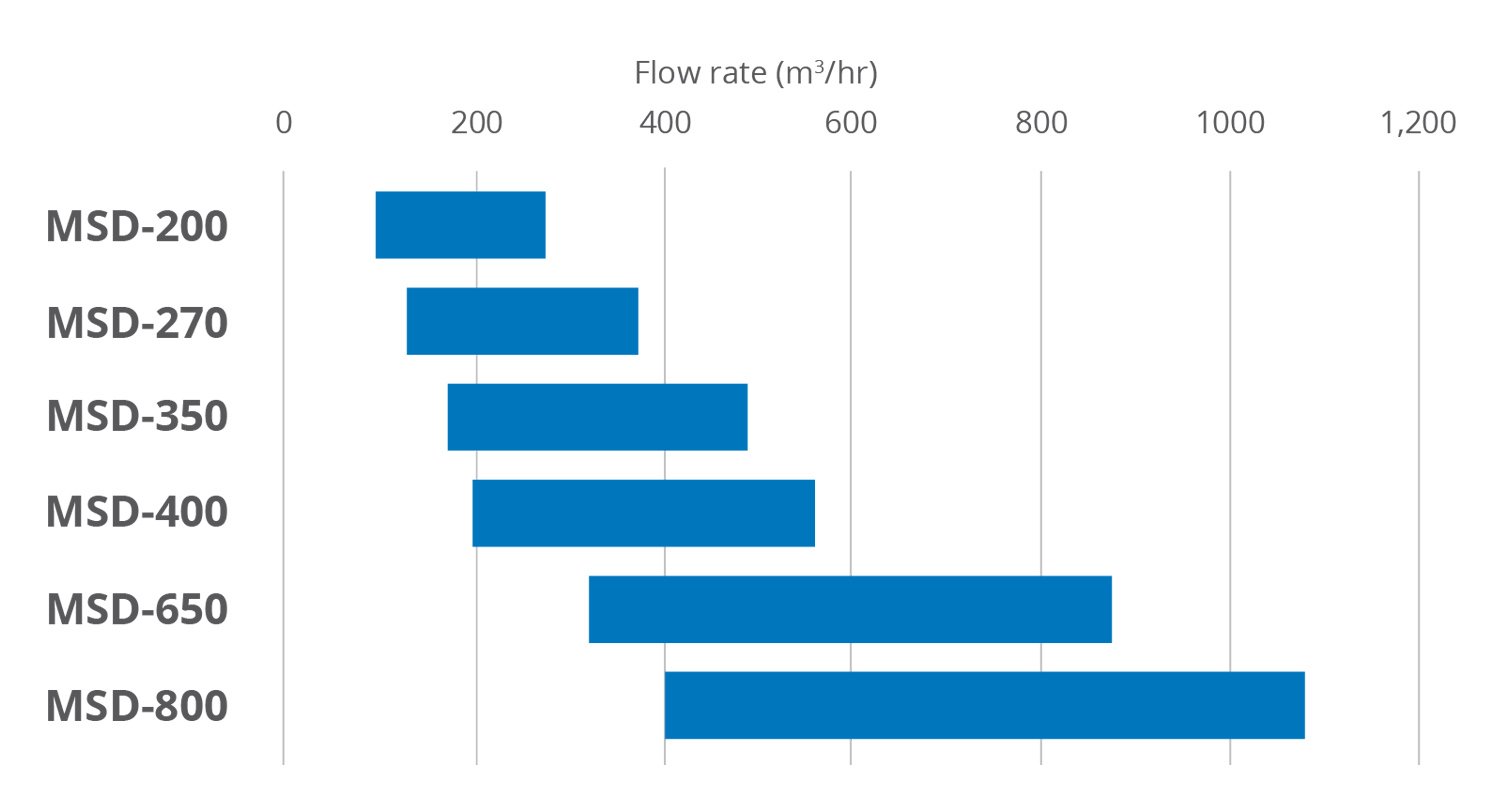

MSD 200-800 flow chartAt larger scales, the efficiency of the MSD Feed Pump exceeds 86%. High efficiency and Super Duplex construction makes the MSD the go-to option for large-scale desaliantion facilities.

The MSD feed pump was used to achieve the world's lowest recorded SWRO energy consumption, in a unit commissioned by Saudi Arabia's Saline Water Conversion Corporation in 2021.

Complete the form below to browse efficiency curves across the entire MSD Series.
