MSD高压泵

可靠性超越,效率超高的多级高压泵

下载MSD高压泵参考资料

联系我们

High efficiency combined with superior materials for long term service in the most challenging feedwater.

All investment cast stage components, highly refined flow path and the innovative water bearing technology make the MSD the “go to” pump for the most demanding SWRO applications around the world.


MSD Series Pump Efficiency Curve
Get a quote
应用
  • 反渗透进水泵、增压泵或循环泵
  • 可应用于任何高压清洁流体
主要规格
  • 20 – 1080 m3/h
  • 效率超达87%
  • 压力高达83吧
  • 超级双相钢结构
特性
  • 平衡叶轮
  • 易于安装和维护
  • 无需油脂润滑
规格
MSD-40
MSD-70
MSD-130
MSD-160
MSD-200
MSD-270
MSD-350
MSD-400
MSD-650
MSD-800
Description

MSD Series Efficiencies

Loaded with unique features such as the patented Water Bearing™ product lubricated bearings, Super Duplex stainless steel construction, and maintenance-free design ensure years of trouble-free operation. No need for several pumps in parallel, the MSD line has a pump feed flow capacity range of 20 to 850 m3/h and efficiencies up to 87%.

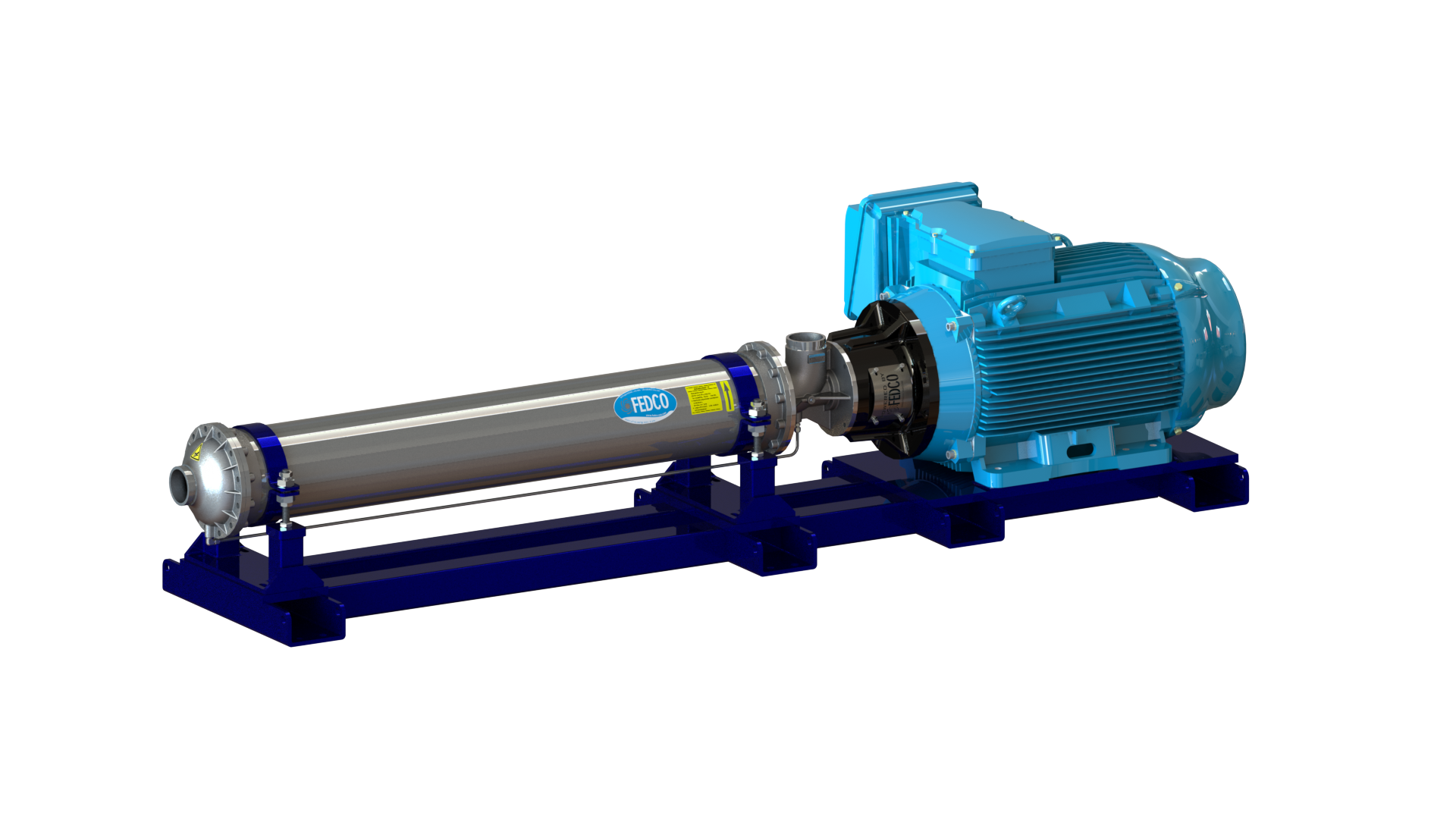

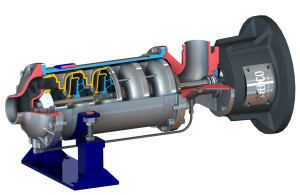

MSD Low Flow models: MSD-40, MSD-70, MSD-130 with shelled design with Super Duplex Shell and shaft, Super Duplex stages standard, baseplate optional.

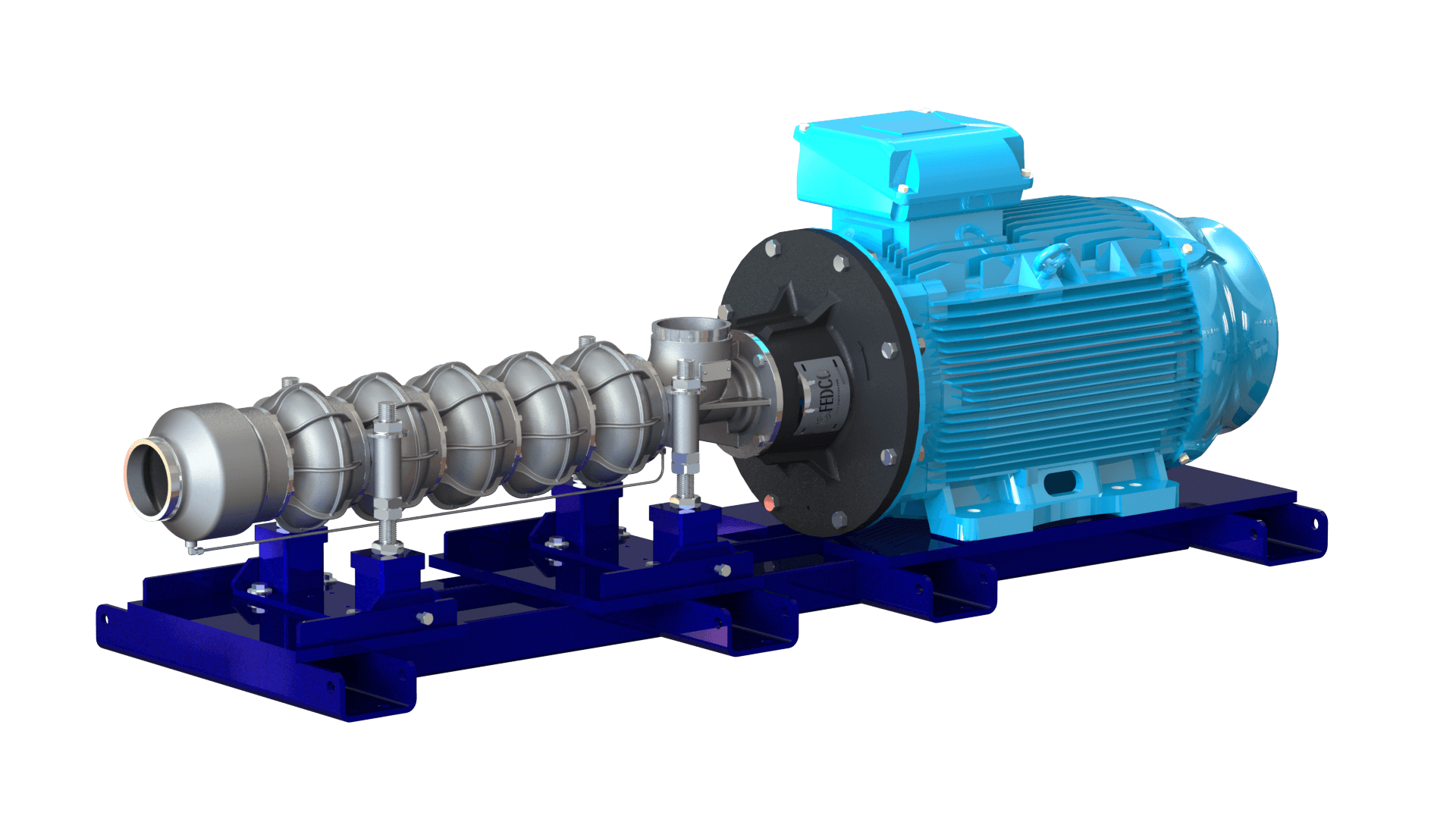

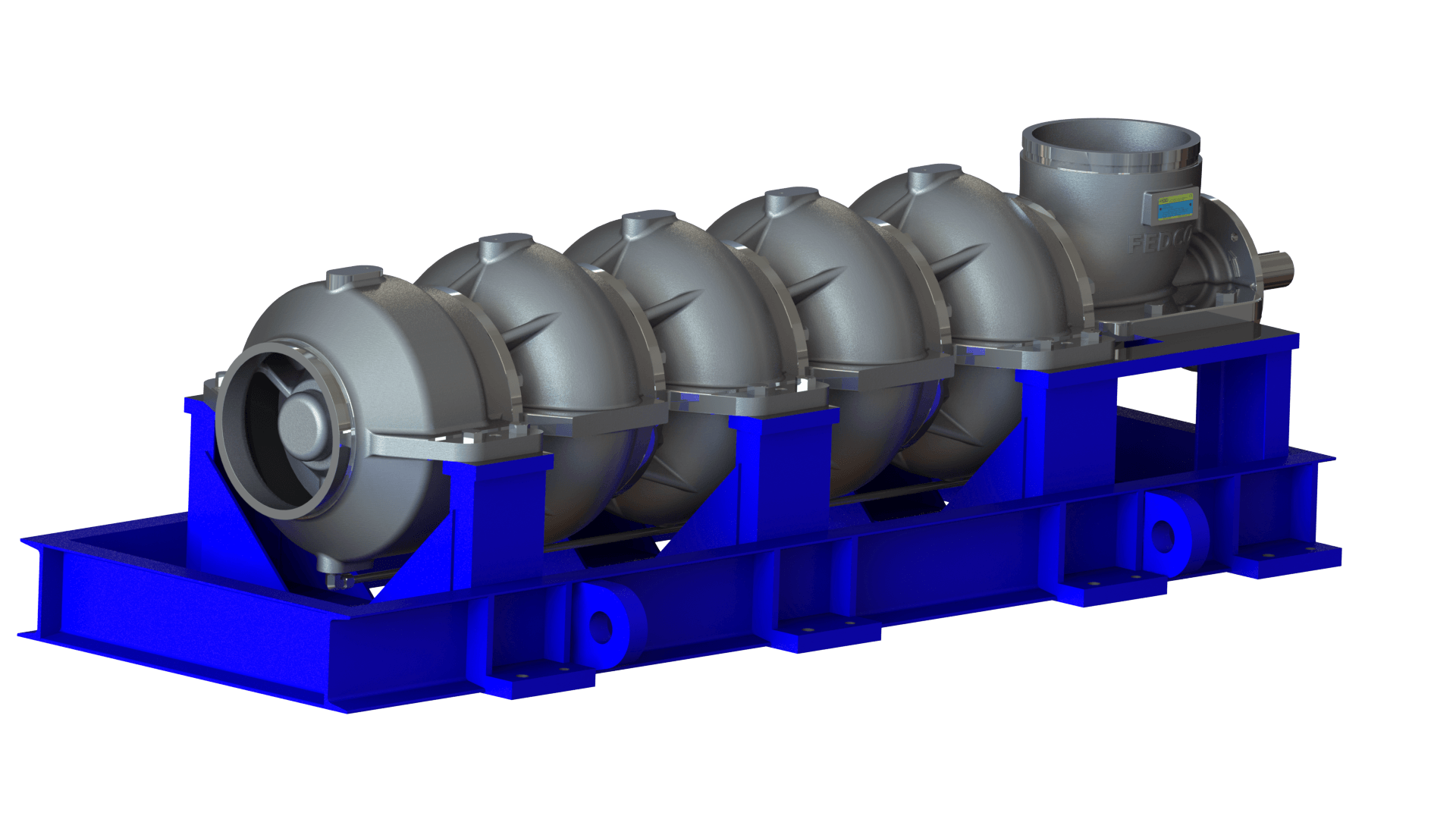

MSD High Flow models: MSD-160, MSD-200, MSD-350, MSD-400, MSD-650 and MSD-800 bolted stage design with Super Duplex shaft and stages standard, baseplate optional.

Features: High efficiency, fully custom engineered, patented product lubricated Water Bearing™ technology, precision leveling foot, Super Duplex construction, inlet rotation 90°.

Benefits:

High Efficiency – Up to 87%

Lubrication – fully lubricated by the pumpage only Smooth and quiet operation – well under 80 dBA (not including the motor)

High inlet pressure option – up to 83 bar (1,200 psi).

  1. Shaft seal operates at low pressure
  2. Flexible disc coupling
  3. Bearing drain line (low pressure)
  4. Stage support blocks
  5. Victaulic pipe joints
  6. Baseplate
  7. Flanged construction for easy internal inspection
  8. Inlet rotatable in 90° increments
  9. Easy shaft alignment
  10. Integrated motor adapter (anodized aluminum alloy)
  11. Super Duplex (Zeron-100)

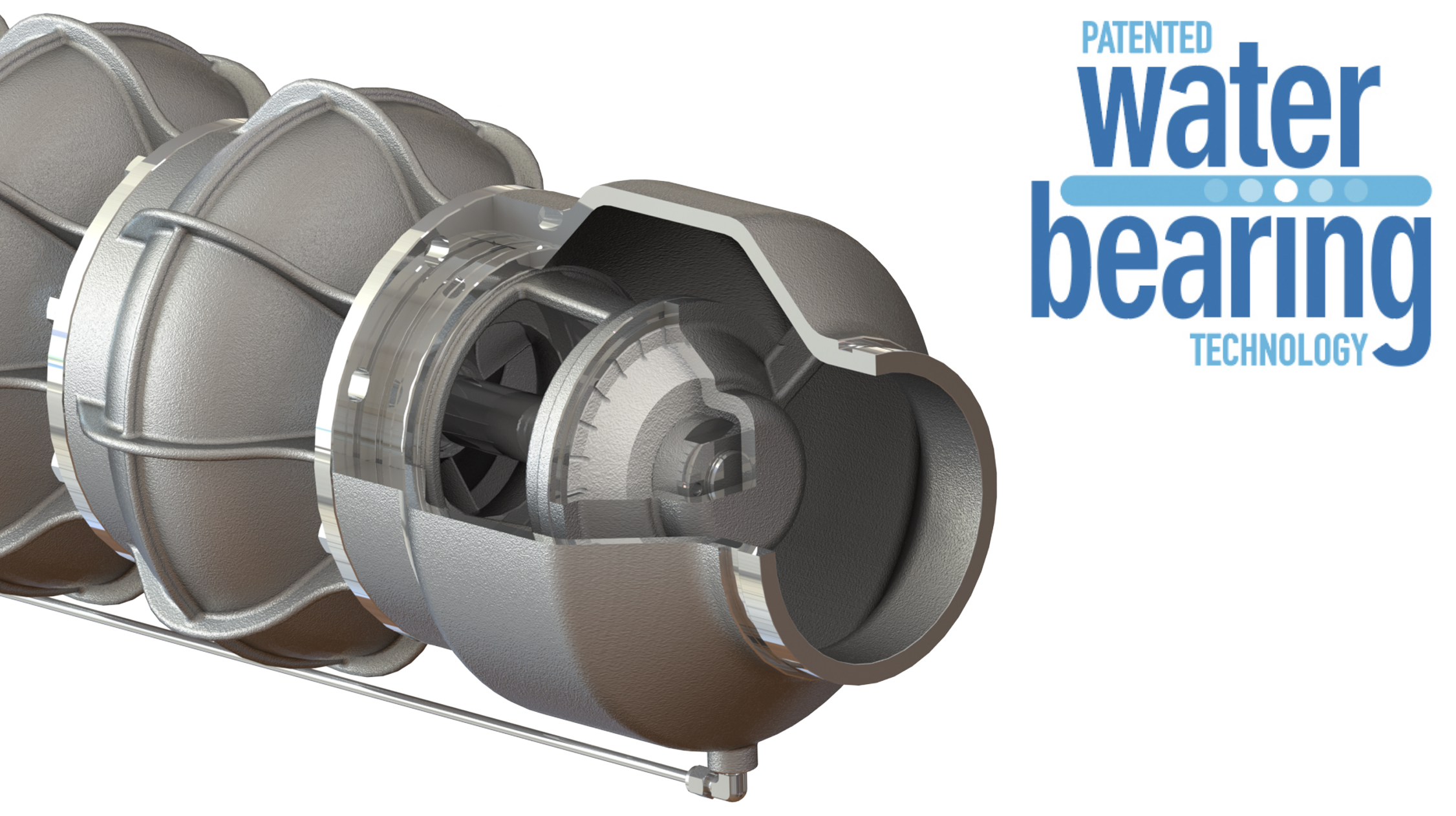

  12. WATER BEARING™
    MSD-Pump-with-numbers
MSD_WB label
High Inlet Pressure Option

All MSD series pumps can be equipped with a high inlet pressure option to allow inlet pressures to 70 bar. The unique design features standard mechanical seals operating at low pressure (1-2 bar) with total protection of the motor from pump thrust loads.MSD HPSC_label

Options

MSD-options-chart
Please contact Customer Service for Manuals and Drawings.

Specifications
MSD-40
MSD-70
MSD-130
MSD-160
MSD-200
MSD-270
MSD-350
MSD-400
MSD-650
MSD-800
Brochures

Click image to view brochure

MSD Brochure 2021 (5)_Part1



Select a Pump



Small- and Mid-Scale Applications

MSD 40-350 Flow RatesFor lower flow rates the MSD Feed Pump provides the efficiency and reliability to ensure the lowest total cost of water in your RO system.

The MSD Feed Pump boasts efficiencies that are competitive with positive displacement pumps, while maintaining the smooth efficiency curve characteristic of centrifugal devices. This means that RO designers and operators need not worry about significant changes in energy consumption in the face of changing feedwater conditions.

Get a quote

Large- and Mega-Scale Applications

MSD 200-800 flow chartAt larger scales, the efficiency of the MSD Feed Pump exceeds 86%. High efficiency and Super Duplex construction makes the MSD the go-to option for large-scale desaliantion facilities.

The MSD feed pump was used to achieve the world's lowest recorded SWRO energy consumption, in a unit commissioned by Saudi Arabia's Saline Water Conversion Corporation in 2021.

Complete the form at the top of the page to browse efficiency curves across the entire MSD Series.
