HP-HEMI Turbocharger

The HEMI is a motor assisted HPB.
The HEMI provides control of feed and brine flows in SWRO while the primary feed pump runs at constant speed and pressure.


What the HEMI does:
  • Provides exceptional energy recovery efficiency
  • Eliminates the VFD on the High-Pressure Pump
  • Computational Fluid Dynamics analysis optimizes every HP-HEMI for peak efficiency at your duty point conditions
  • Industry-leading three (3) year limited warranty
  • Super Duplex SS 2507 standard MOC
  • Complete ERD package – user provides just standard control signals, power, and process piping

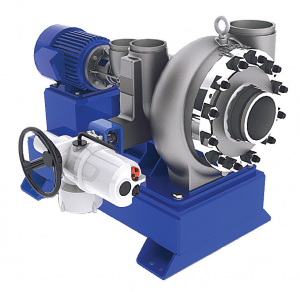

HP-HEMI Motorized Turbocharger
HP-HEMI Motorized Turbocharger

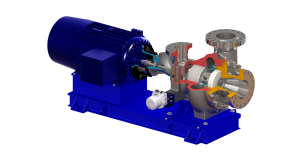

HP-HEMI Motorized Turbocharger Cutaway View
HP-HEMI Motorized Turbocharger Cutaway View

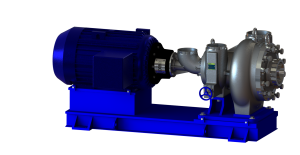

HP-HEMI Motorized Turbocharger Side View
HP-HEMI Motorized Turbocharger Side View
Why the HEMI?
  • Lowest CAPEX of any ERD
  • Lowest Specific Energy Consumption
    Highest Reliability
    No compromises on membrane operating
Get a quote
HP-HEMI Motorized Turbocharger

Six (6) models cover the largest current and anticipated SWRO trains. Standard MOC is Super Duplex SS 2507. Brine nozzle valve actuators, flanged connections and other options available. FEDCO provides the complete HEMI package including motor, VFD and valve actuator.
HPB-HEMI-w-parts-and-flow

  1. Brine aux nozzle actuator
  2. HEMI motor
  3. Brine discharge module
  4. Common baseplate

Please contact Customer Service for Manuals and Drawings.

Description
HP-HEMI

Six (6) models cover the largest current and anticipated SWRO trains. Standard MOC is Super Duplex SS 2507. Brine nozzle valve actuators, flanged connections and other options available. FEDCO provides the complete HEMI package including motor, VFD and valve actuator.
HPB-HEMI-w-parts-and-flow

  1. Brine aux nozzle actuator
  2. HEMI motor
  3. Brine discharge module
  4. Common baseplate

Please contact Customer Service for Manuals and Drawings.

Specifications
HP-HEMI-1000
HP-HEMI-1400
HP-HEMI-2000
